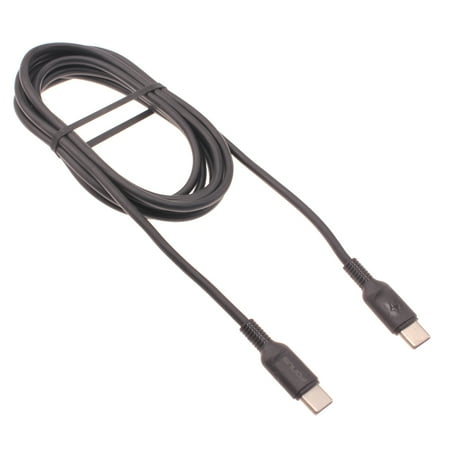

Amazon Basics USB-C to USB-C Fast Charger Cable, 6 Foot

Simple and working well, not expansive , good quality

I did a ton of research and read a ton of reviews for other cords because I was nervous about wasting money and buying cords that don’t last. I would buy them again in a heart beat. Mine work great and charge fast! They fit in my iPad, laptop, and phone (they don’t wiggle). It’s a really great deal and great quality.

Benson here again with a USB Type-C to USB Type-C cable review. Today I am reviewing AmazonBasics USB 2.0 C-to-C cables, in all four lengths of 0.5ft, 3ft, 6ft, and 9ft.

These cables are not a legacy USB cables like the majority of my previously reviewed products. Instead, these are pure C-to-C cables meant to be used with newer accessories such as Type-C chargers, or to connect Type-C phones to Type-C laptops.

These are USB 2.0 Type-C cables, meaning that they only support USB 2.0 data, and are not appropriate for consumers looking for a cable to connect their laptop to a Type-C monitor or docking station for video out, or to connect to SuperSpeed USB 3.1 devices such as external HDD or SSDs. However, these should still be a good charging cables, though, at up to 60W.

*Advanced Cable Tester Results*
I am using Total Phase’s Advanced Cable Tester, which does easy cable testing in three critical areas:
* continuity – checks that every pin on the cable is connected where it’s supposed to, not connected to where it’s not
* DC Resistance – checks to see if this cable is within spec for IR Drop (Section 4.4.1 of the Type-C spec) for charging performance
* Signal integrity – checks the USB 2.0 data lines can perform at 480mbps.

Quick summary of results from the tester:
Continuity- All four cables passed continuity, meaning all have the right number of wires, and they all go where they are supposed to.

DC Resistance-
9ft cable: Vbus 108.78 mΩ, Gnd 50.10 mΩ
6ft cable: Vbus 117.12 mΩ, Gnd 59.15 mΩ
3ft cable: Vbus 91.71 mΩ, Gnd 45.59 mΩ
0.5ft cable : Vbus 27.23 mΩ, Gnd 35.86 mΩ
Maximum allowed values for Vbus and Gnd are 167mΩ and 83.3mΩ respectively, so all four cables comfortably meet the DC resistance requirement. These cables will not cause excessively slow charging.

Signal Integrity- All four cables passed High speed signal integrity, meaning they will perform well at USB 2.0 speeds.

*USB-IF Certification*
Amazon advertises these cables are USB-IF Certified compliant for USB 2.0. Let’s cross reference from USB’s official cable PDF.
B01LONPUM4 – 6 inch cable. TID 210,000,202
B01GGKYZQM – 3ft cable. TID 210,000,201
B01GGKZ1VA – 6ft cable. TID 210,000,200
B01GGKZ3MM – 9ft cable. TID 210,000,199

These part numbers are pulled directly from USB’s spreadsheet, and they match the Amazon’s ASINs for these 4 cables. Therefore, I conclude that these cables are certified compliant by USB-IF, as Amazon advertises.

*Functional Testing*
For functional testing, I have tested charging my Chromebook Pixel 2015 with Apple’s 87W USB-C power adapter:

Apple MNF82LL/A 87W USB-C Power Adapter

Since the AmazonBasics cables only support 3A, I expect that the Apple 87W adapter will only offer 60W to my Chromebook Pixel. In my testing, all four cables successfully charge the laptop at 60W with no problems using USB Power Delivery. I will post my more detailed data in the comments to keep this review more concise.

I also performed a quick test of USB 2.0 data capabilities by connecting my Nexus 5X phone (a USB 2.0 phone) to the Chromebook Pixel using all four cables. In each case, the phone could be put into MTP mode and large file transfer was successful.

For other more subjective judgements of this cable : AmazonBasics USB-C cables are in line with the rest of AmazonBasics cables; they’re good quality, thin and flexible, at all lengths. The longer cables get more and more stiff and thick as they use larger gauge wire in order to meet performance requirements, so expect the 6ft and 9ft cables to be a fair bit thicker than the 3ft. The connectors on both ends are deep-draw extruded Type-C plugs, which put them on par with higher end cables from Apple and Google.

*Conclusion*
AmazonBasics USB-C to USB-C 2.0 cables are excellent charging and high-speed data (up to 480mbps) cables. My testing shows they can handle high voltage high power charging up to 60W easily. I am pleased to see that Amazon is jumping into the ecosystem with a compliant and good offering. This is a no brainer for folks with Nexus 5X/6P, Pixel, Pixel XL, Chromebook, or MacBook users looking for an affordable spare cable at various lengths.

Durable quality. Perfect cord length. Value for money. Works great and compatibility rocks

The quality is excellent! The cord length is bit longer than I’m used to, but I’m ok with it. Works very well and keeps my devices charged!

The best thing about these cords is the length of the cord! The extra 3 feet makes such a huge difference. The connection on one of the cords was a little weird- I had to wiggle it in order to get it into the port on the phone. But it charges great.

The Amazon Basics USB Type-C to USB Type-C 2.0 Charger Cable in a 9-foot length provides a practical and extended solution for seamless charging and data transfer.

Crafted by Amazon Basics, this cable features a USB Type-C connector on both ends, offering versatility for a wide range of devices. The 9-foot length provides added flexibility, allowing you to comfortably charge your device while still having room to move.

The cable supports 2.0 charging and data transfer speeds, ensuring efficient power delivery and quick file transfers. The white color adds a clean and minimalist touch to your charging setup.

For users seeking a reliable and extended charging cable for their USB Type-C devices, the Amazon Basics 9-Foot Charger Cable is a convenient choice. It combines practicality with efficiency, providing the extra length needed for various charging scenarios.
